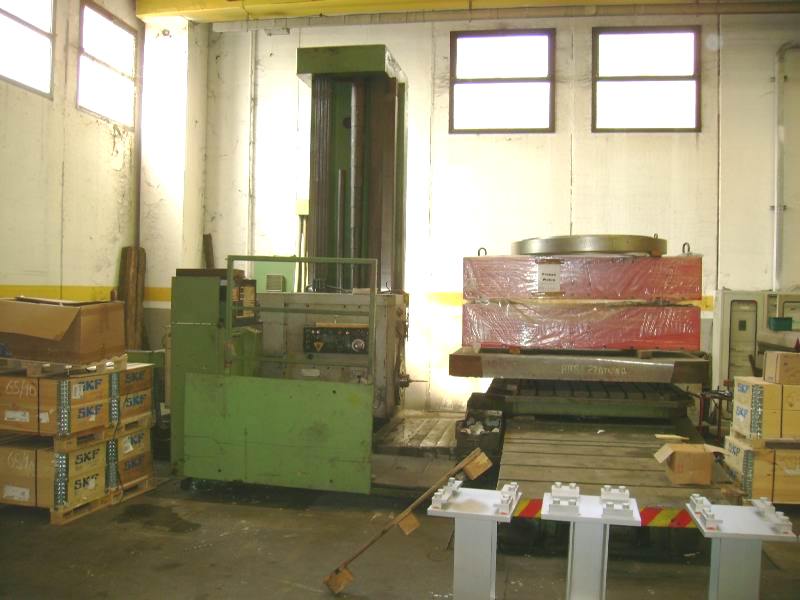

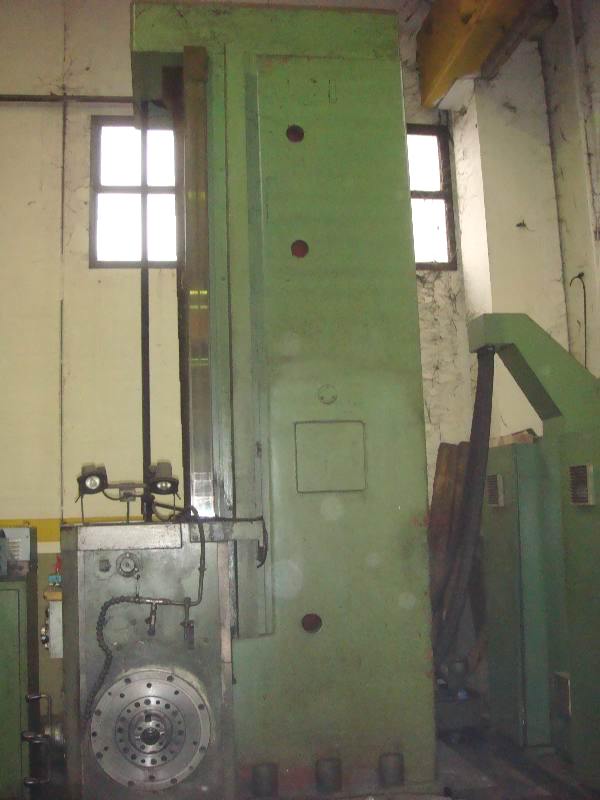

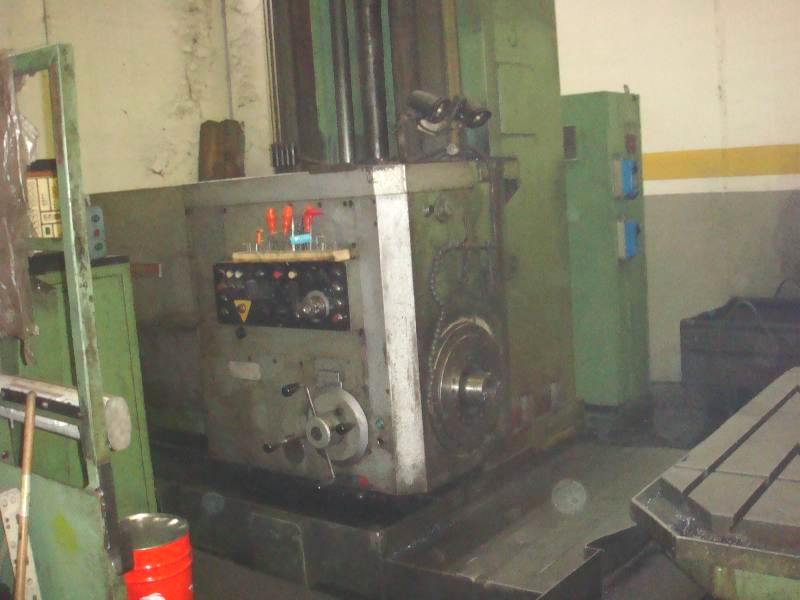

NAME

T TYPE BORING MACHINE

MANUFACTURER

TOS

MODEL / TYPE

WHN 13.8A

YEAR OF MANUFACTURE

1986

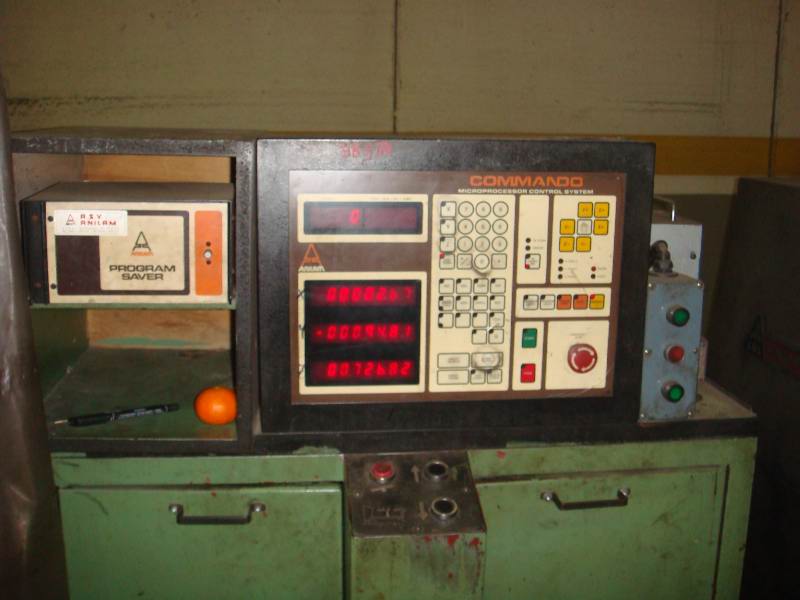

CONTROL

NC SYSTEM

MACHINE DESCRIPTION

SPINDLE DIAMETER

130 MM

TOOL TAPER

ISO 50

SPINDLE MOTOR

38 KW

X ( LONGITUDINAL TRAVEL )

3500 MM

ASSE Y (VERTICAL HEAD TRAVEL)

2000 MM

ASSE Z (CROSS TRAVEL )

1200 MM

ASSE W (SPINDLE TRAVEL)

800 MM

TABLE SIZE

1600 X 1800 MM

TABLE LOAD

12 TON

WEIGHT APPROX.

35 TON
