NAME

CNC TURN MILL CENTRE

ITEM NO.

196

MANUFACTURER

GILDEMEISTER

MODEL / TYPE

CTX 400

YEAR OF MANUFACTURE

2003

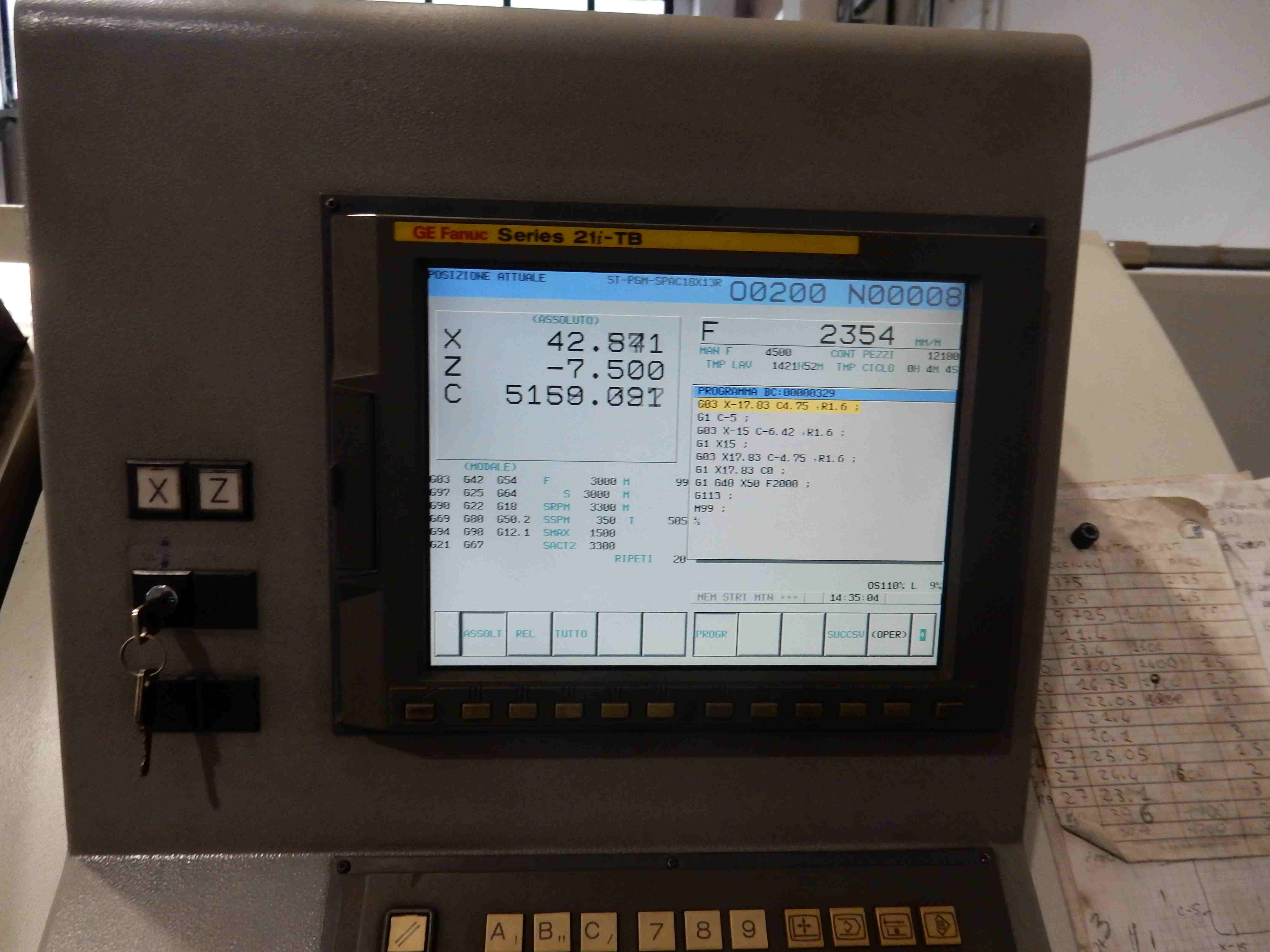

CONTROL

FANUC 21iTB

SPINDLE BORE

75 mm

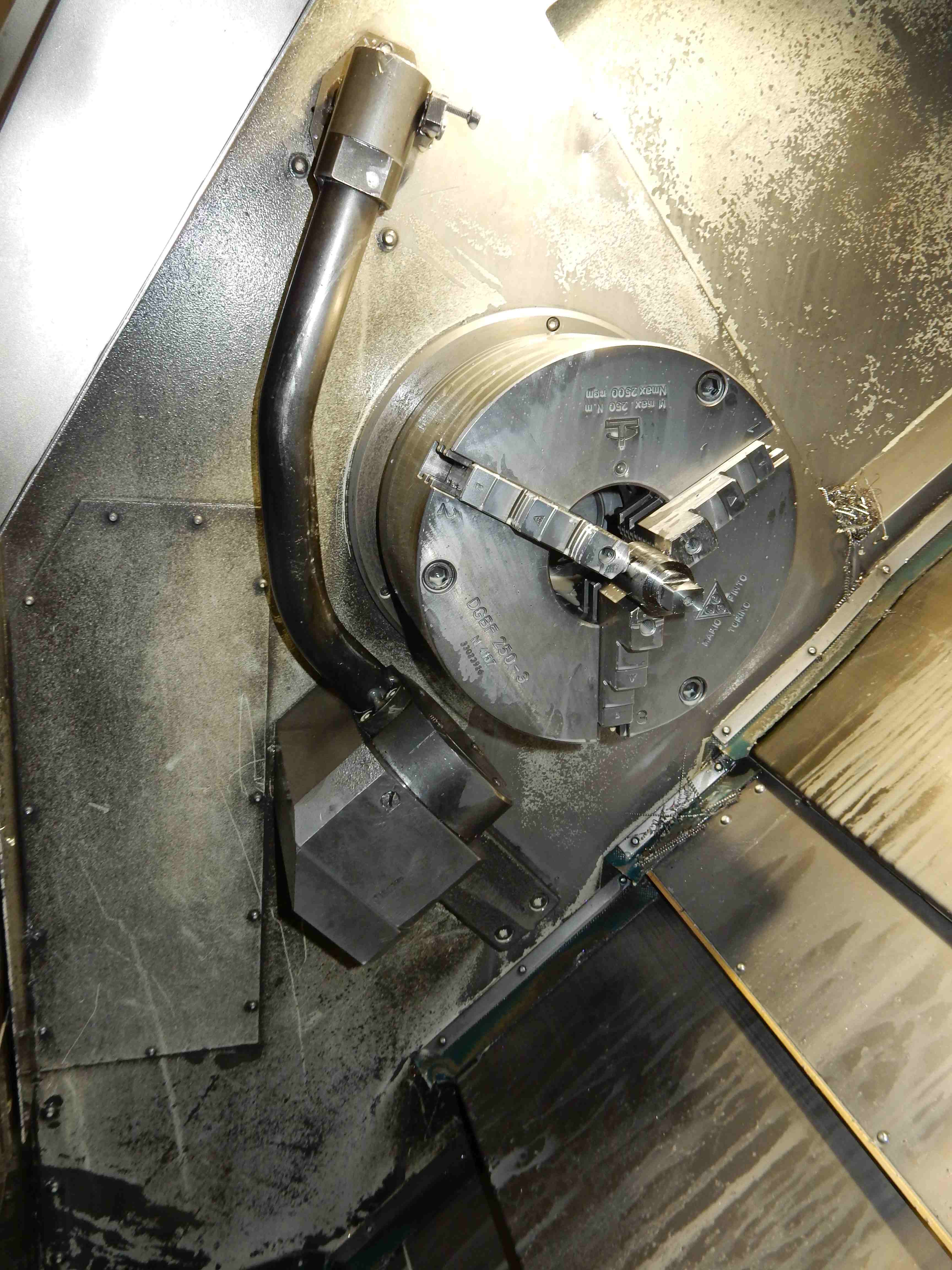

CHUCK DIAMETER

210 mm

TURNING DIAMETER

570 mm

TURNING Ø OVER SADDLE

420 mm

TURNING LENGTH

635 mm

TURNING SPEED

5000 rpm

TOOLCHANGER POSITIONS

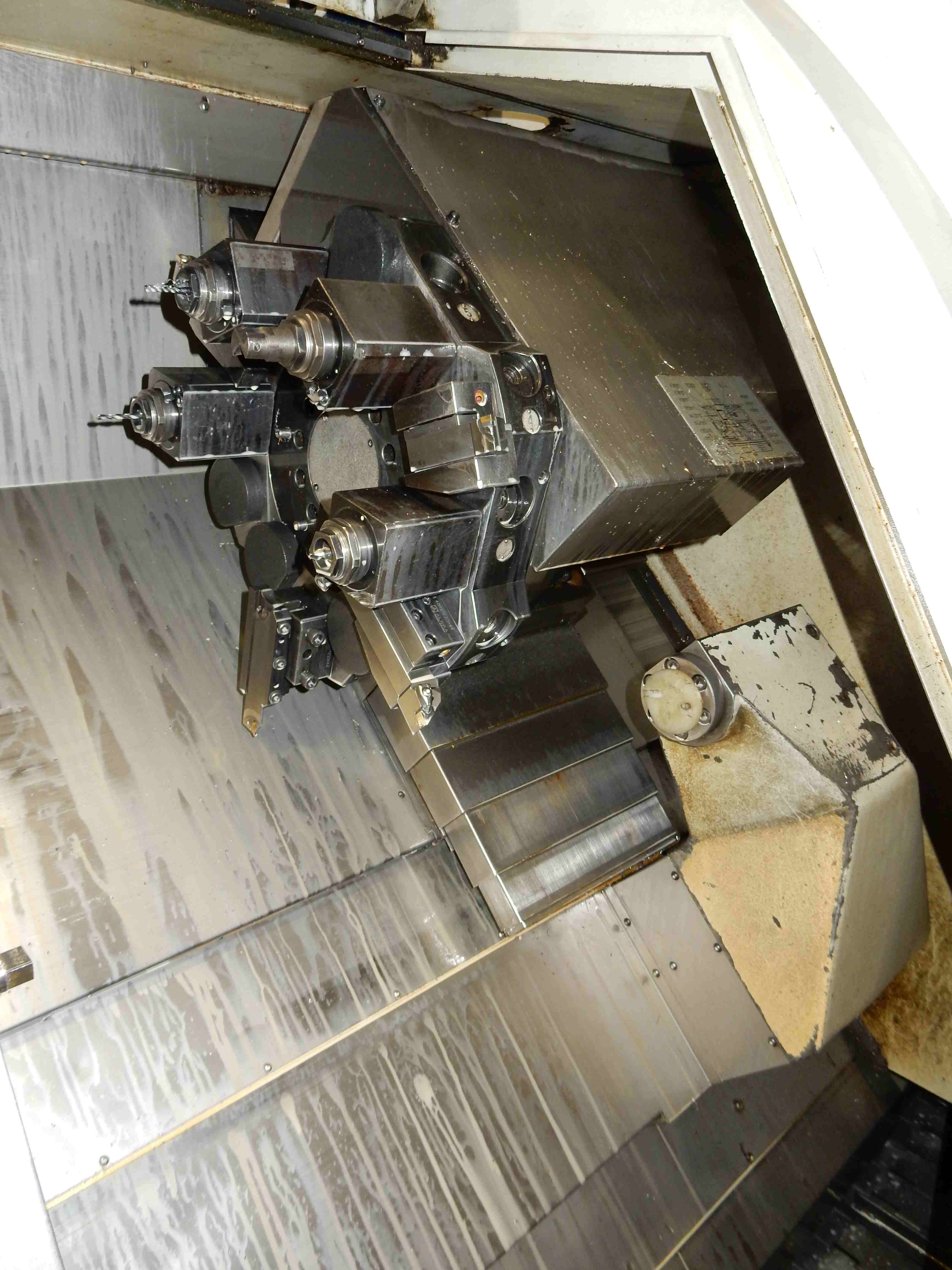

Total 12 tool of which 6 live tools

WEIGHT APPROX.

6.000 kg

DIMENSIONS (L X W X H) APPROX.

3210 x 1750 x 1750 mm

ACCESSORIES

TOOL PRESETTING

C AXIS

SET OF 4 PCS LIVE TOOLS

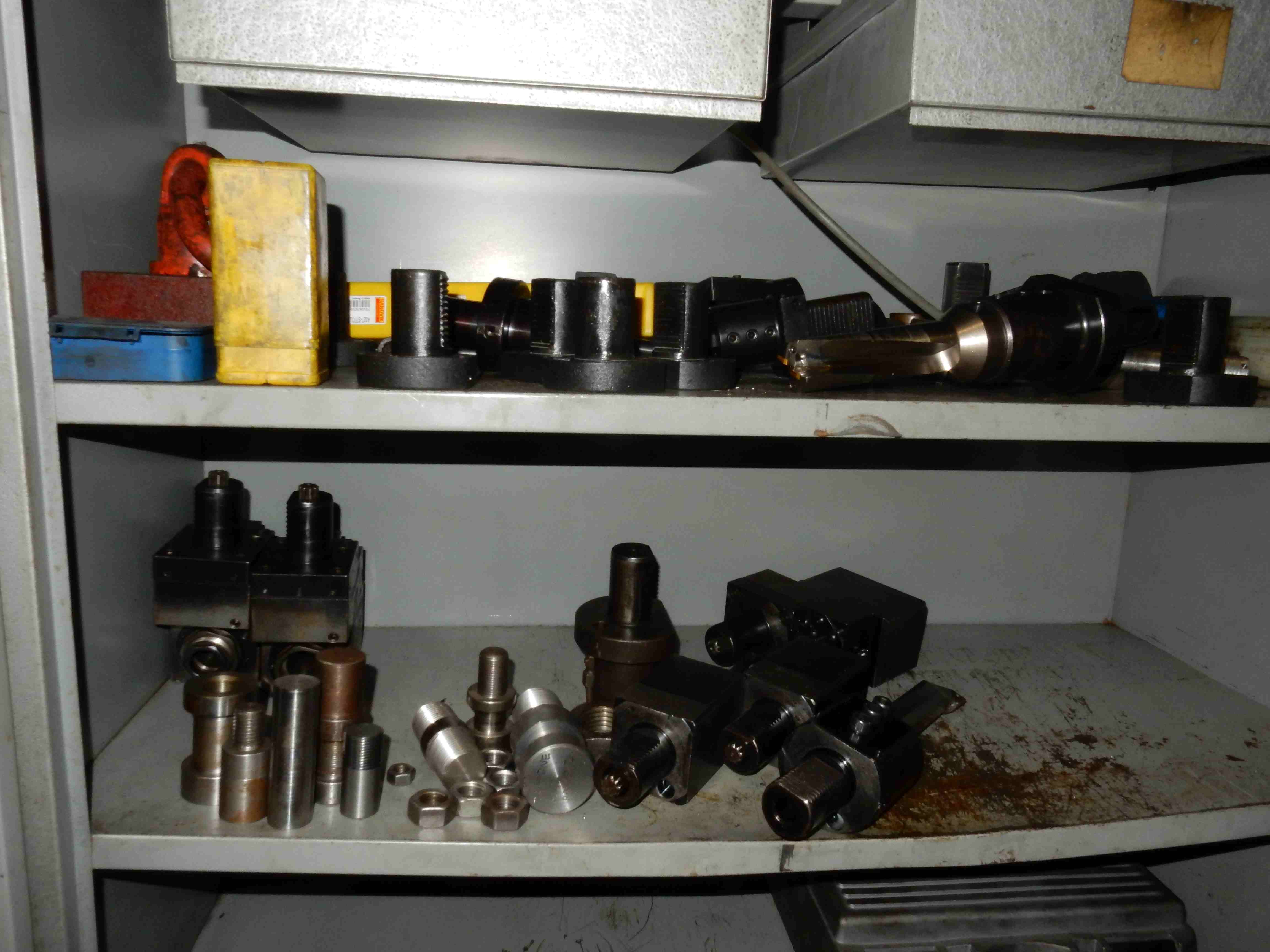

GENERAL PACKAGE OF TOOL HOLDERSN.8-9

MACHINE USER MANUAL

FANUC PROGRAMMING MANUAL

PARAMETRES IN FLOPPY
