NAME

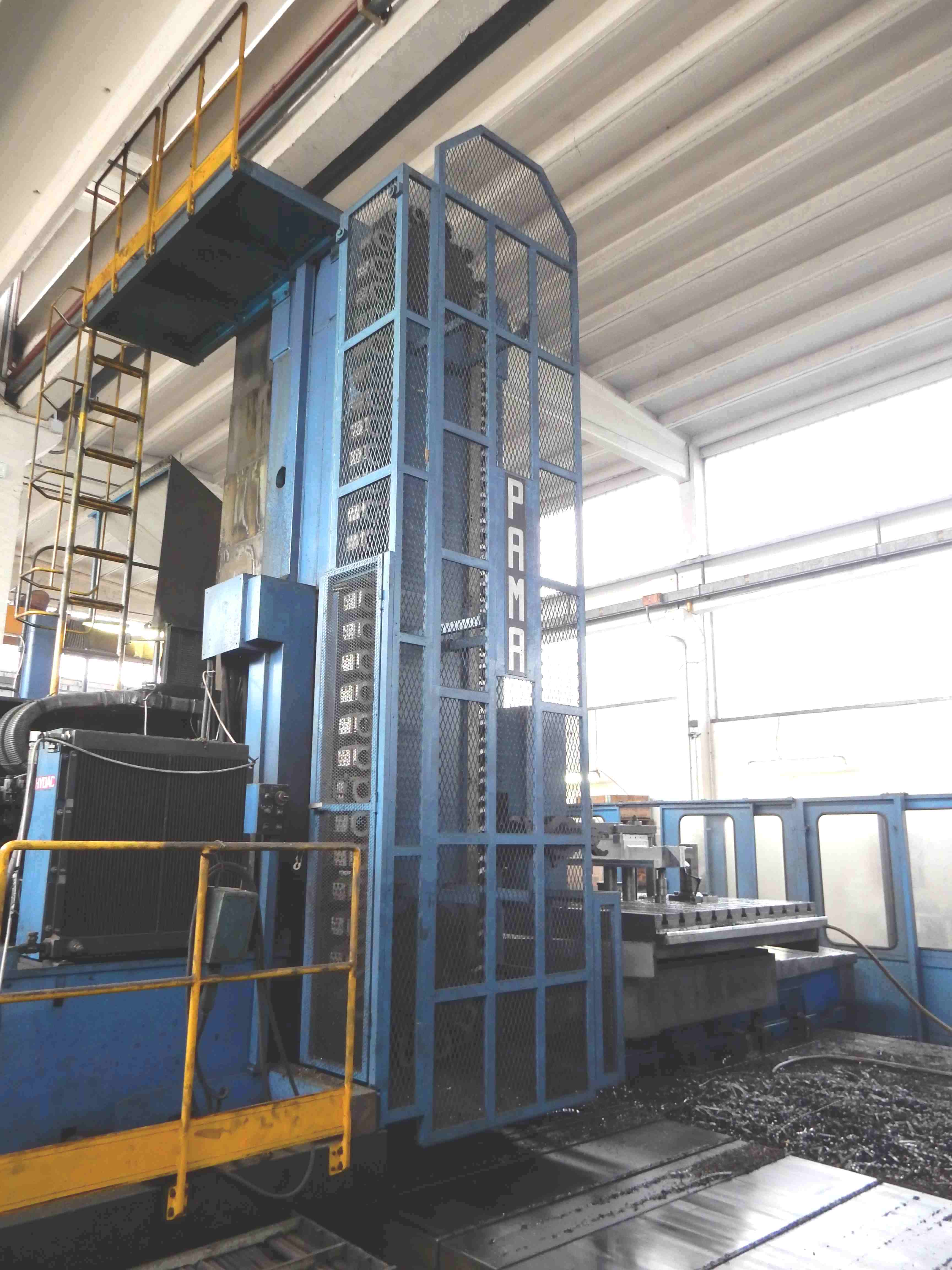

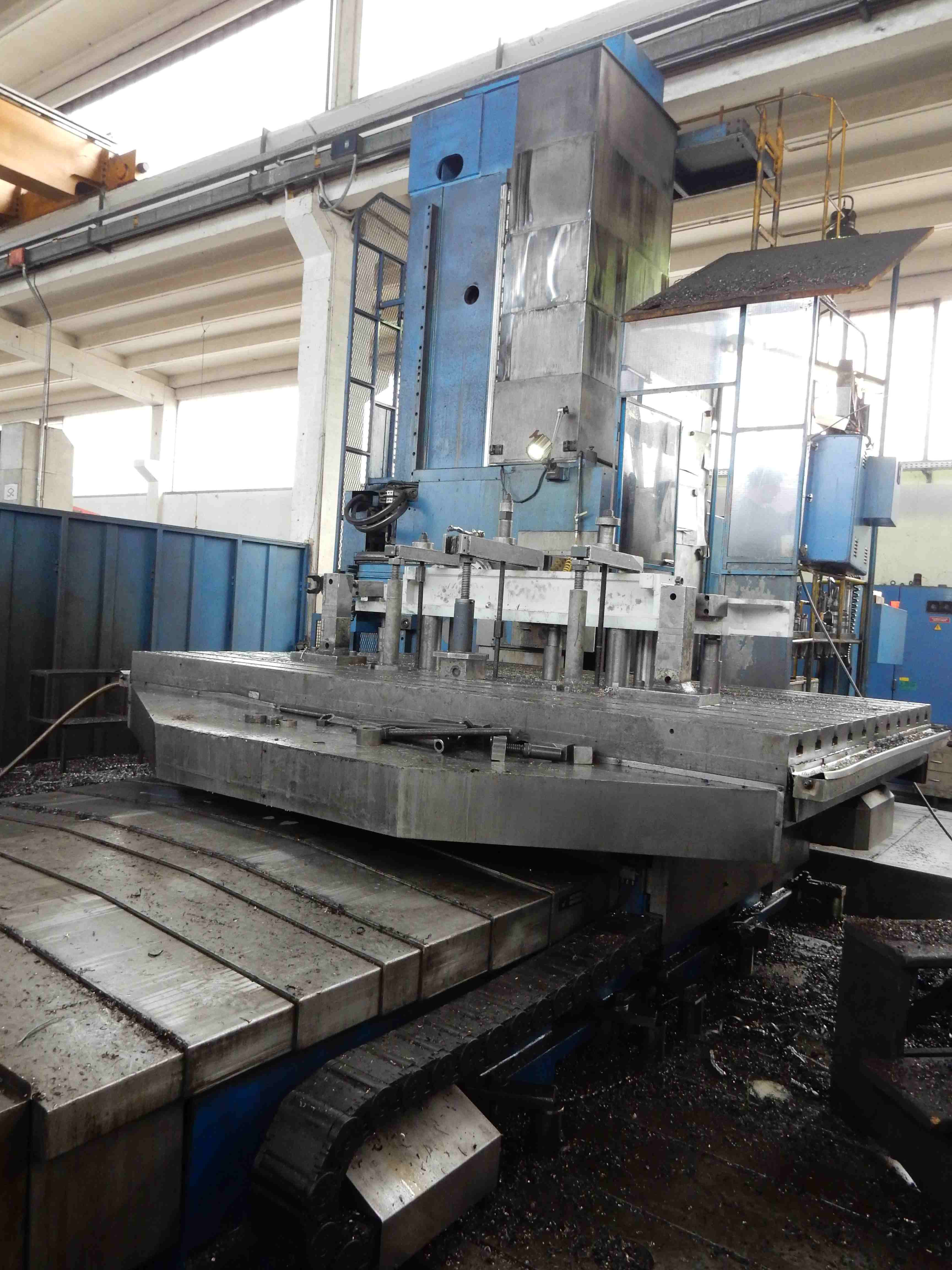

PAMA BORING MACHINE

ITEM NO.

501

MANUFACTURER

PAMA

MODEL / TYPE

SPEEDRAM

YEAR OF MANUFACTURE

1994

CONTROL

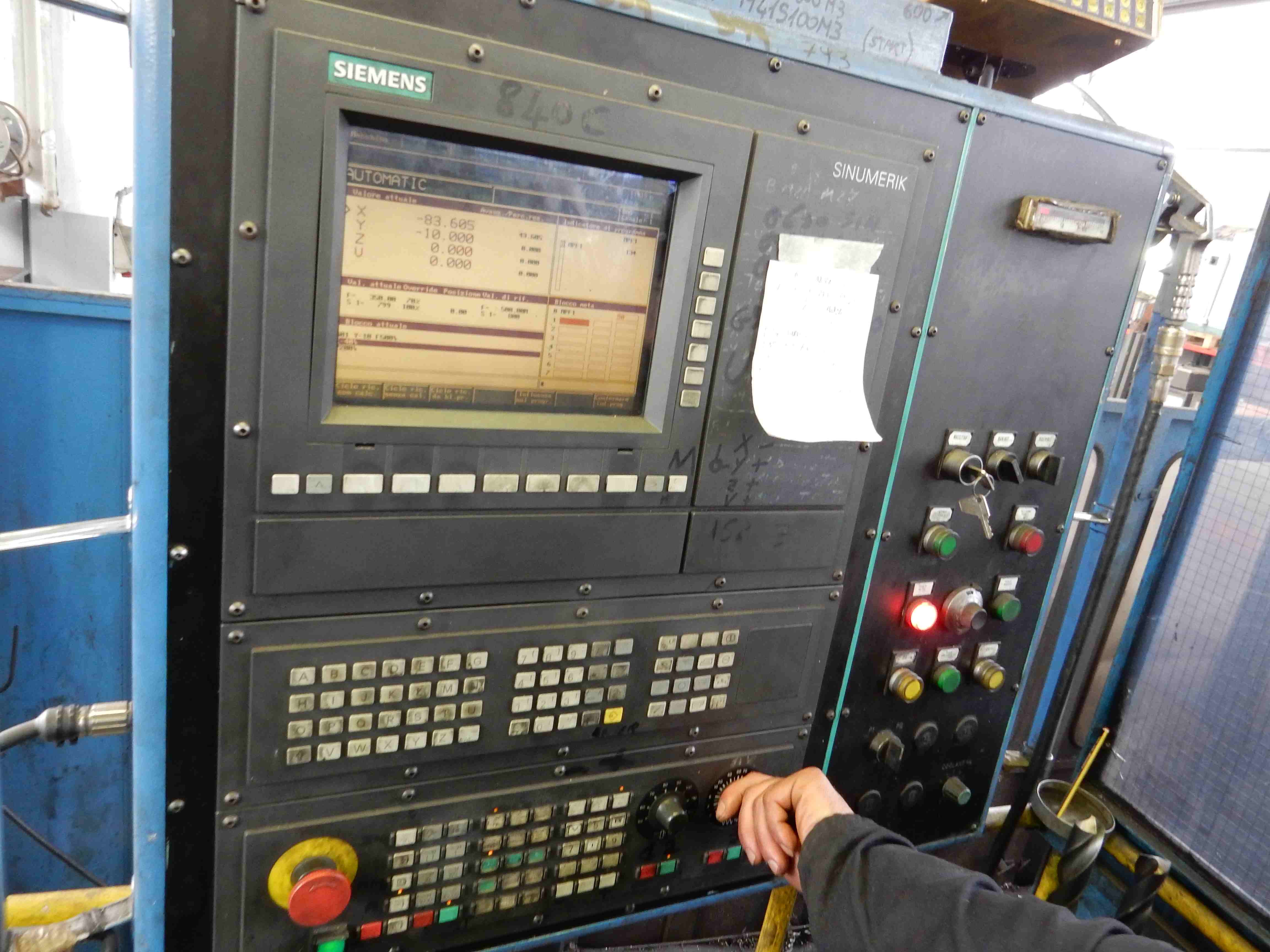

SIEMENS 840 C

MACHINE DESCRIPTION

SPINDLE DIAMETER

150 MM

TOOL TAPER

ISO 50

SPINDLE SPEED RANGE

6-1600 RPM

ATC

50 TOOLS

SPINDLE MOTOR

65 KW

MAIN MOTOR

105 KW

X ( LONGITUDINAL TRAVEL )

4000 MM

ASSE Y (VERTICAL HEAD TRAVEL)

2400 MM

ASSE W (SPINDLE TRAVEL)

700 MM

ASSE Z (RAM TRAVEL )

800 MM

RAPID TRAVERSE: X-/Y-/Z-/W

0-10.000 MM/MIN

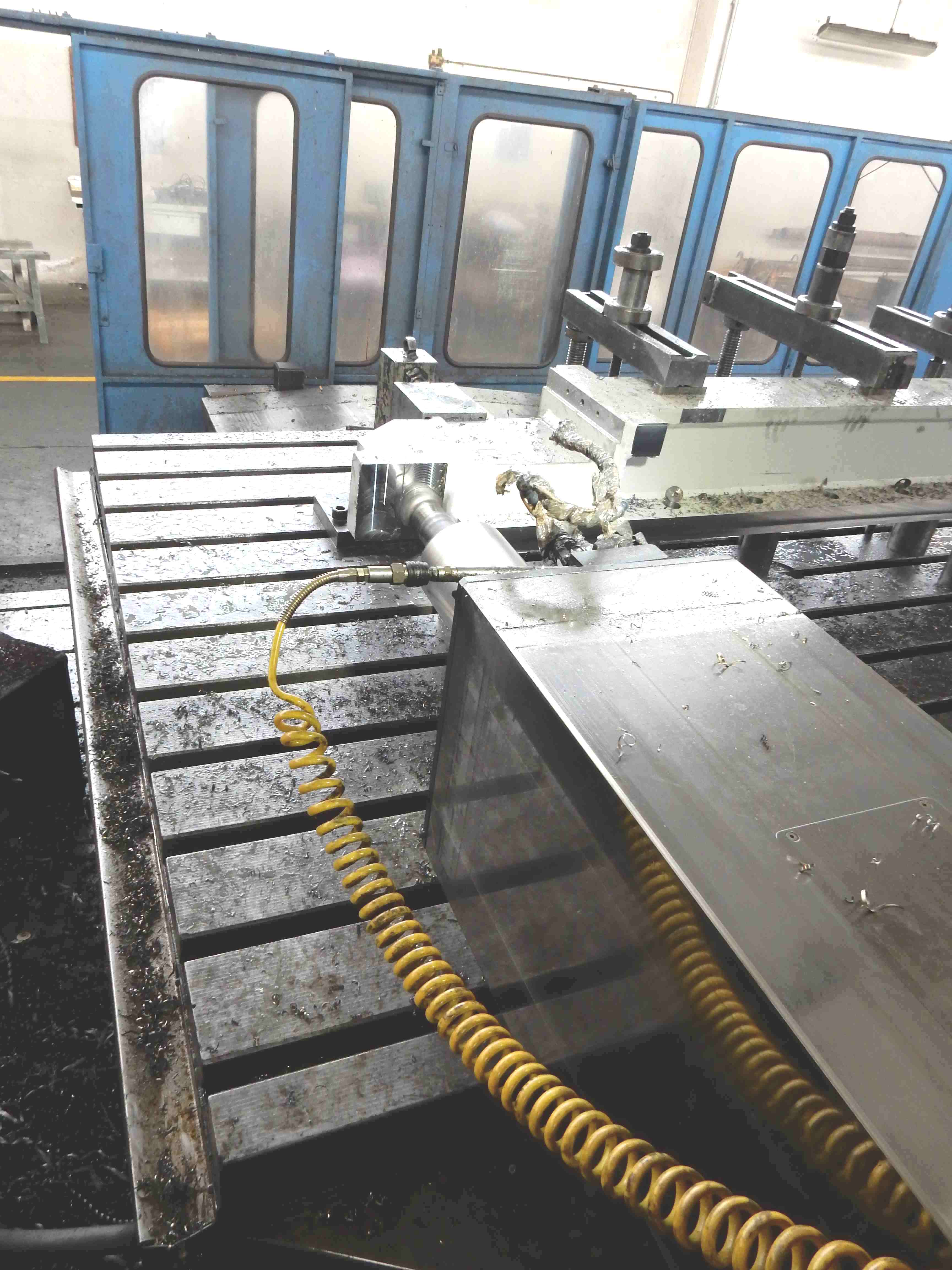

TABLE SIZE

2600 X 2600 MM

TABLE LOAD

30 TON
